Aerospace Standard Design Shapes

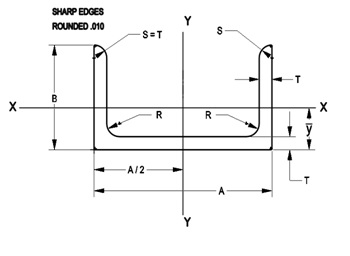

NOTES ON SYMBOLS
“Ȳ” = LOCATING DIMENSIONS FOR AXIS XX-YY.
Ixx (and Iyy) = MOMENT OF INERTIA ABOUT XX and YY.
ƿxx (and ƿyy) = RADIUS OF GYRATION ABOUT XX and YY.
NOMINAL DIMENSIONS AREA SECTION ELEMENTS
A B T R Square
Inches		 ȳ Ixx Iyy ƿ xx ƿ yy
AND or AMS Extrusion
Number		 Inches Inch Inches⁴ Inch
AND10137-0601 .750 .375 .050 .094 .0727 .106 .0009 .0060 .111 .286
AND10137-0602 .500 .050 .0852 .153 .0020 .0075 .152 .296
AND10137-0603 .625 .050 .0977 .204 .0037 .0090 .195 .304
AND10137-0604 .063 .125 .123 .207 .0045 .0109 .190 .298
AND10137-0605 .875 .063 .155 .315 .0117 .0147 .275 .308
AND10137-0606 .094 .220 .327 .0159 .0193 .269 .296
AND10137-0701 .875 .375 .050 .094 .0790 .0995 .0009 .0087 .106 .332
AND10137-0702 .500 .050 .0916 .146 .0020 .0110 .148 .347
AND10137-0703 .063 .125 .115 .148 .0025 .0132 .144 .339
AND10137-0704 .625 .063 .131 .196 .0047 .0158 .190 .347
AND10137-0705 .078 .158 .201 .0055 .0183 .187 .341
AND10137-0706 .750 .050 .094 .117 .245 .0065 .0151 .237 .360
AND10137-0707 .063 .125 .147 .247 .0079 .0184 .233 .354
AND10137-0708 .078 .177 .253 .0094 .0214 .230 .348
AND10137-0709 1.000 .078 .216 .362 .0213 .0276 .314 .358
AND10137-0710 .125 .328 .379 .0304 .0378 .304 .339
AND10137-1001 1.000 .500 .063 .125 .123 .140 .0026 .0181 .144 .384
AND10137-1002 .078 .148 .145 .0029 .0211 .141 .377
AND10137-1003 .625 .063 .139 .187 .0049 .0216 .187 .394
AND10137-1004 .078 .168 .193 .0058 .0252 .186 .388
AND10137-1005 .750 .063 .155 .229 .0083 .0250 .231 .402
AND10137-1006 .078 .187 .242 .0098 .0294 .229 .393
AND10137-1007 .094 .220 .248 .0113 .0335 .226 .390
AND10137-1008 .875 .063 .170 .289 .0128 .0285 .275 .409
AND10137-1009 .078 .206 .294 .0152 .0335 .271 .403
AND10137-1010 .094 .244 .300 .0176 .0383 .269 .397
AND10137-1011 1.250 .078 .265 .460 .0417 .0460 .397 .417
AND10137-1012 .125 .406 .478 .0607 .0643 .387 .398
AND10137-1101 1.125 .500 .063 .125 .131 .134 .0027 .0241 .143 .429
AND10137-1102 .078 .158 .139 .0031 .0281 .140 .422
AND10137-1103 .625 .063 .147 .178 .0051 .0285 .186 .441
AND10137-1104 .078 .177 .184 .0060 .0334 .184 .434
AND10137-1105 .750 .078 .197 .232 .0102 .0388 .228 .444
AND10137-1106 .094 .232 .237 .0117 .0444 .225 .438
AND10137-1107 .875 .063 .181 .278 .0135 .0379 .274 .458
AND10137-1108 .078 .216 .283 .0158 .0441 .271 .452
AND10137-1109 .094 .256 .289 .0183 .0507 .268 .445
AND10137-1110 .125 .328 .298 .0225 .0616 .262 .433
AND10137-1111 1.000 .078 .236 .336 .0232 .0495 .314 .458
AND10137-1112 .094 .279 .341 .0269 .0569 .310 .452
AND10137-1113 .125 .359 .352 .0331 .0695 .303 .440
AND10137-1114 1.375 .094 .350 .508 .0661 .0757 .435 .466
AND10137-1115 .125 .453 .519 .0832 .0930 .428 .453
AND10137-1201 1.250 .625 .094 .125 .220 .181 .0071 .0493 .179 .473
AND10137-1202 .875 .094 .267 .278 .0190 .0650 .267 .493
AND10137-1203 .125 .344 .288 .0234 .0796 .261 .481
AND10137-1204 1.125 .078 .265 .377 .0334 .0698 .355 .513
AND10137-1205 .094 .314 .383 .0389 .0807 .352 .507
AND10137-1206 .125 .406 .393 .0484 .0994 .345 .495
AND10137-1207 1.500 .125 .500 .560 .1106 .1292 .470 .508
AND10137-1301 1.375 .625 .078 .125 .197 .169 .0063 .0540 .179 .524
AND10137-1302 .094 .232 .175 .0073 .0621 .177 .517
AND10137-1303 .875 .078 .236 .263 .0169 .0705 .268 .547
AND10137-1304 .094 .279 .268 .0198 .0818 .266 .543
AND10137-1305 .125 .359 .278 .0242 .1002 .259 .528
AND10137-1306 1.125 .094 .326 .371 .0403 .1010 .352 .557
AND10137-1307 .125 .422 .381 .0504 .1246 .346 .544
AND10137-1308 .156 .513 .390 .0591 .1451 .339 .532
AND10137-1309 1.625 .156 .668 .612 .1710 .2035 .506 .552
AND10137-1401 1.500 .625 .094 .125 .244 .168 .0076 .0768 .177 .561
AND10137-1402 .125 .313 .178 .0090 .0939 .170 .548
AND10137-1403 .875 .125 .375 .269 .0249 .1236 .258 .574
AND10137-1404 .156 .455 .278 .0289 .1485 .267 .572
AND10137-1405 1.125 .094 .338 .360 .0414 .1233 .350 .604
AND10137-1406 1.500 1.125 .156 .125 .533 .379 .0610 .1791 .338 .580
AND10137-1407 1.750 .156 .728 .654 .2176 .2675 .547 .606
AND10137-1601 1.750 .750 .078 .125 .245 .194 .0117 .1104 .218 .671
AND10137-1602 .094 .291 .199 .0135 .1280 .215 .664
AND10137-1603 .875 .125 .406 .253 .0262 .1793 .254 .664
AND10137-1604 1.000 .094 .338 .290 .0311 .1603 .304 .689
AND10137-1605 .156 .533 .309 .0454 .2347 .292 .664
AND10137-1606 1.250 .125 .500 .400 .0740 .2413 .385 .695
AND10137-1607 .156 .611 .409 .0875 .2844 .379 .683
AND10137-1608 .188 .188 .728 .416 .1003 .3270 .371 .670
AND10137-1609 1.500 .125 .125 .563 .505 .1243 .2826 .470 .709
AND10137-1610 .156 .689 .514 .1482 .3340 .464 .696
AND10137-1611 .188 .188 .822 .521 .1712 .3861 .456 .685
AND10137-1612 2.000 .188 1.010 .742 .3916 .5000 .623 .704
AND10137-2001 2.000 .750 .094 .125 .314 .187 .0140 .1768 .213 .750
AND10137-2002 .125 .406 .197 .0171 .2202 .205 .736
AND10137-2003 .156 .494 .207 .0198 .2583 .200 .723
AND10137-2004 1.000 .094 .361 .274 .0324 .2194 .300 .779
AND10137-2005 .125 .469 .284 .0405 .2752 .294 .766
AND10137-2006 .156 .572 .293 .0474 .3247 .288 .754
AND10137-2007 1.250 .125 .531 .380 .0774 .3302 .382 .788
AND10137-2008 .156 .650 .389 .0916 .3912 .376 .776
AND10137-2009 1.500 .125 .594 .482 .1302 .3852 .468 .806
AND10137-2010 .156 .728 .491 .1553 .4576 .462 .793
AND10137-2011 1.750 .156 .806 .598 .2410 .5241 .547 .807
AND10137-2012 .188 .188 .963 .604 .2802 .6071 .539 .794
AND10137-2013 2.500 .188 1.250 .939 .7720 .8394 .787 .821
AND10137-2201 2.250 1.000 .094 .125 .385 .261 .0336 .2898 .296 .868
AND10137-2202 .125 .500 .270 .0419 .3652 .290 .855
AND10137-2401 2.500 1.000 .094 .125 .408 .248 .0346 .3723 .291 .955
AND10137-2402 .125 .531 .258 .0432 .4706 .285 .941
AND10137-2403 .156 .650 .268 .0508 .5596 .280 .928
AND10137-2404 2.500 1.375 .125 .125 .625 .394 .1093 .6030 .418 .982
AND10137-2405 .156 .767 .403 .1302 .7206 .412 .970
AND10137-2406 .188 .188 .916 .411 .1500 .8398 .405 .957
AND10137-2407 1.750 .156 .125 .884 .552 .2605 .8935 .543 1.006
AND10137-2408 .188 .188 1.060 .559 .3029 1.027 .535 .986
AND10137-2601 2.750 1.000 .125 .125 .563 .247 .0444 .5931 .281 1.030
AND10137-2602 .156 .689 .257 .0522 .7069 .275 1.010
AND10137-3001 3.000 1.375 .156 .125 .845 .373 .1378 1.113 .404 1.150
AND10137-3002 .188 .188 1.010 .381 .1585 1.303 .396 1.140
AND10137-3003 1.750 .156 .125 .962 .514 .2767 1.349 .536 1.190
AND10137-3004 .188 .188 1.150 .521 .3217 1.582 .529 1.170
PART MARKING AND DOCUMENTATION MAY BE EITHER AMS 10137 OR AND10137.
(For reference only)
