AND10136 - Tee Section for Aerospace and Aircraft Aluminum Extrusions
Back

Aerospace Standard Design Shapes

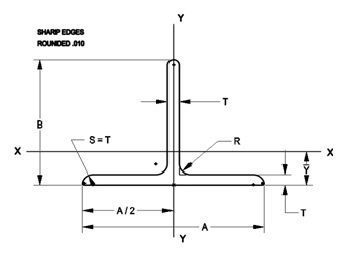

NOTES ON SYMBOLS
“Ȳ” = LOCATING DIMENSIONS FOR AXIS XX-YY.
Ixx (and Iyy) = MOMENT OF INERTIA ABOUT XX and YY.
ƿxx (and ƿyy) = RADIUS OF GYRATION ABOUT XX and YY.
NOMINAL DIMENSIONS AREA SECTION ELEMENTS
A B T R Square
Inches		 ȳ Ixx Iyy ƿ xx ƿ yy
AND or AMS Extrusion
Number		 Inches Inch Inches⁴ Inch
AND10136-1201 1.250 .625 .050 .094 .0937 .121 .0028 .0077 .173 .287
AND10136-1202 .750 .063 .125 .127 .160 .0055 .0098 .209 .276
AND10136-1301 1.375 .750 .050 .094 .106 .148 .0046 .0103 .209 .312
AND10136-1302 1.000 .063 .125 .150 .228 .0131 .0129 .296 .293
AND10136-1303 .078 .183 .235 .0156 .0158 .292 .294
AND10136-1304 .094 .216 .242 .0182 .0188 .290 .295
AND10136-1305 1.250 .094 .240 .327 .0345 .0188 .379 .280
AND10136-1401 1.500 .750 .063 .125 .141 .141 .0052 .0169 .192 .346
AND10136-1402 .094 .204 .159 .0080 .0244 .198 .346
AND10136-1403 1.000 .078 .193 .225 .0160 .0200 .288 .327
AND10136-1404 .094 .228 .232 .0186 .0245 .286 .328
AND10136-1405 1.250 .078 .212 .307 .0301 .0206 .377 .312
AND10136-1406 .094 .252 .314 .0354 .0245 .375 .312
AND10136-1407 .125 .326 .327 .0449 .0319 .371 .313
AND10136-1501 1.625 .875 .078 .125 .192 .180 .0110 .0263 .240 .370
AND10136-1502 .125 .295 .198 .0161 .0407 .234 .372
AND10136-1503 1.125 .078 .212 .254 .0228 .0263 .328 .352
AND10136-1504 .125 .326 .274 .0339 .0408 .322 .364
AND10136-1505 1.375 .094 .275 .345 .0475 .0314 .415 .338
AND10136-1506 .125 .358 .358 .0605 .0408 .411 .338
AND10136-1507 .156 .437 .370 .0725 .0499 .407 .338
AND10136-1601 1.750 0.875 .094 .125 .240 .179 .0131 .0393 .234 .405
AND10136-1602 .125 .311 .191 .0164 .0512 .230 .406
AND10136-1603 1.125 .094 .263 .252 .0273 .0393 .322 .386
AND10136-1604 .156 .418 .276 .0412 .0628 .314 .387
AND10136-1605 1.375 .094 .287 .333 .0484 .0393 .411 .370
AND10136-1606 .156 .457 .358 .0741 .0627 .403 .371
AND10136-1607 1.625 .094 .310 .420 .0777 .0394 .500 .356
AND10136-1608 .125 .405 .434 .0995 .0513 .496 .356
AND10136-1609 .156 .497 .446 .1200 .0629 .492 .356
AND10136-1701 1.875 1.000 .078 .125 .222 .200 .0169 .0408 .275 .429
AND10136-1702 .094 .263 .207 .0197 .0486 .274 .429
AND10136-1703 .125 .342 .219 .0249 .0635 .270 .430
AND10136-1704 1.250 .125 .373 .294 .0479 .0634 .358 .412
AND10136-1705 .156 .457 .306 .0572 .0776 .354 .412
AND10136-1706 1.500 .094 .310 .363 .0631 .0485 .452 .396
AND10136-1707 .125 .405 .376 .0809 .0635 .447 .396
AND10136-1708 .156 .496 .388 .0973 .0776 .443 .396
AND10136-1709 1.750 .156 .535 .477 .1513 .0777 .532 .381
AND10136-2001 2.000 1.000 .078 .125 .231 .194 .0171 .0496 .272 .463
AND10136-2002 .094 .275 .200 .0200 .0592 .270 .464
AND10136-2003 .125 .358 .212 .0253 .0770 .266 .464
AND10136-2004 1.250 .078 .251 .265 .0325 .0495 .360 .444
AND10136-2005 .094 .299 .272 .0383 .0592 .358 .445
AND10136-2006 .125 .389 .285 .0488 .0770 .354 .445
AND10136-2007 1.750 .094 .346 .438 .0995 .0592 .537 .414
AND10136-2008 .125 .451 .451 .1278 .0772 .532 .414
AND10136-2401 2.500 1.250 .094 .125 .346 .241 .0403 .1168 .342 .581
AND10136-2402 .125 .452 .254 .0513 .1530 .338 .582
AND10136-2403 .156 .554 .265 .0616 .1881 .333 .583
AND10136-2404 1.625 .094 .381 .351 .0858 .1168 .475 .554
AND10136-2405 .125 .498 .364 .1101 .1530 .470 .554
AND10136-2406 .156 .613 .376 .1329 .1882 .466 .554
AND10136-2407 2.000 .125 .545 .487 .1991 .1531 .604 .530
AND10136-2408 .156 .671 .500 .2412 .1882 .599 .530
AND10136-2409 .188 .188 .807 .509 .2831 .2240 .592 .527
AND10136-3001 3.000 1.500 .125 .125 .545 .295 .0914 .2670 .409 .700
AND10136-3002 .156 .671 .307 .1101 .3291 .405 .700
AND10136-3003 2.000 .156 .749 .456 .2539 .3292 .582 .663
AND10136-3004 .188 .188 .901 .465 .2984 .3919 .576 .659
AND10136-3005 2.500 .125 .125 .670 .611 .3929 .2669 .766 .631
AND10136-3006 .188 .188 .995 .632 .5649 .3925 .754 .628
PART MARKING AND DOCUMENTATION MAY BE EITHER AMS 10136 OR AND10136.
(For reference only)
